Foam Mattress drill 140cm 9103 variable

Type of project : Drilling Machines

The mattress drilling is designed for drilling foam plates.

The machine can process various types of foam.

For purchase will always take place testing of the drilling foams.

The drill machine is easy to operate and produces no dust while it is in operation.

The residual material is automatically expressed. The drills can be change in line.



Overall size            approx.         4.7m x 2.1m x 2.3m (LxWxH)
Size of plate length max. 2200mm min. 800mm
  width max.1400mm
  thickness max. 300mm min. 110mm or
Weight approx. 1600kg
Machine output approx. 3 minutes with 5 steps drilling
Power input   380V - 50 Hz - 16A
    480V - 60 Hz - 10A

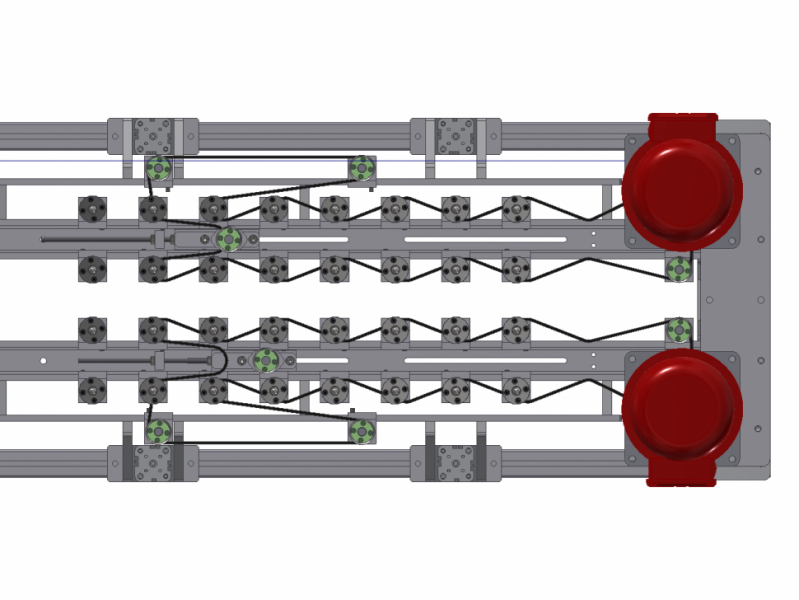

Drill motor   2x or 4x (more price 2.500 eruro)
Drill blocks   2x 20 or ..... (more price)
Drill   2x 15 or ..... (more price)
Hole size   12, 15, 20mm or ..... (more price)
Distant drill   min. 50mm
Option 1   automatic lubrication system (more price 9.600 euro)
Option 2   rest material take away system (more price 9.800 euro)


Price and Payment terms


Price                      on request
Payment 50% along with purchase order
  50% before sending
Delivery of factory
Guarantee 1 year - excl. wearing parts
Specifications CE Norm with English documentation


Not all the foam can be drilled sometimes there is a max. thickness
